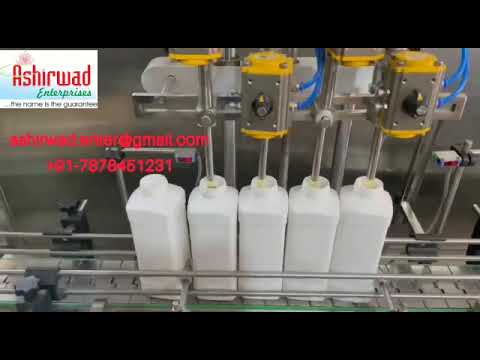

Containers moving on SS Slat conveyor, feed below the filling
nozzles through a settable twin pneumatically operated stopper system. The twin
pneumatically operated stopper system and reciprocating nozzles can precisely
match for centering of container below nozzles, to avoid spillage of liquid on
container.
To minimize foaming adjustable nozzle will reciprocate according
to filling dose, nozzle will go upwards slowly from bottom level of bottle
towards neck during filling. No container No filling system arrangement is
standard features of the machine. The main drive of the machine and conveyor
drive consist of AC Motor with synchronized variable AC Frequency Drive. PLC Controller provided to set fill volume,
speed of conveyor and set fill timing this means fill size can be easily set.
HIGHLIGHT
OF THE MACHINE:
ü Total GMP
Model
ü Total contact parts are of S.S.-304 and Other surface parts are
of S.S.-304
ü Manufactured
with latest technology
ü Synchronized two nos. A.C. drive for main
motor & conveyor belt
ü Automatic
speed control system.
ü No Bottle - No Filling systems.
ü Special Type Diving Nozzle to prevent against
foaming problems.
ü Nozzle Lock system to dropping problems.
ü Automatic
sensor based bottle counter system.
ü Bottle stopper and holder pneumatic based.
ü Rigid
vibration free construction for trouble free performance
ü $.3.
Elegantly matt finished body.
ü Minimum change overtime, from one size to
another fill size
ü Self
lubricating UHMW-PE guide profile for SS slat chain provides low friction wear
surface, smooth and noiseless conveying.
ü Safety
guard for conveyor gear box, motor and pneumatic cylinders
ü Inbuilt
protection against over current, Voltage fluctuation, Short circuit in
ü S.S.
conveyor belt made from the S.S.-304 [Length: 8 to 10 Feet]
ü Adjustable Conveyor height as per customer
choice to align with another line machine.
ü Standard
in quality & economical in price
